360 Zoom Light Z1
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
7W 70 60 108 15°/45°
12W 100 90 120 15°/45°
​

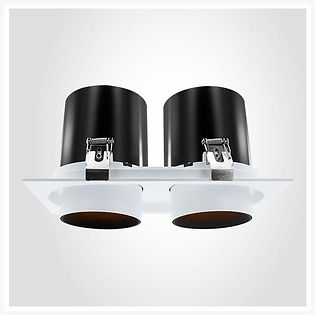

2x12W 185x100 173x91 100 15°/45°
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
360 Zoom Light Z2 Semi Recessed
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
12W 100 90 120 15°/45°
​
​
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Zoom Light Lite
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
​
12W 140 120 90 24°
18W 113 100 90 36°
​
20W 165 150 110 24°
​
25W 135 125 100 36°
​
30W 135 125 100 36°
30W 190 150 110 24°
40W 190 175 145 24°
50W 165 150 120 36°
Available CCT
Tech Spec. Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
*all dimensions are in mm
Semi Recessed Pipe Zoom Light
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
12W 90 80 95 15°/45°
​
​
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Long Pipe Zoom Light
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle P(D+H)
6W 68 54 15 15-30°. 25X112
9W 68 54 15 15-30° 25X197
12W 68 54 15 15-30° 25X304
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
