COB X Series

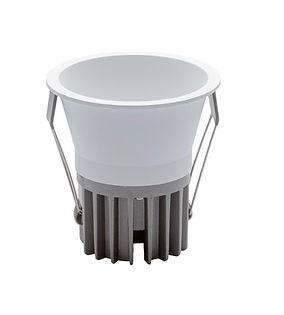

X1-DL
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
​
3W 48 38 46 24°/36°/60°
6W/8W 69 65 70 24°/36°/60°
​
12W 75 65 80 24°/36°/60°
​
15W 85 75 85 24°/36°/60°
​
20W 100 90 110 24°/36°/60°
​
36W 120 110 125 24°/36°/60°
*all dimensions are in mm
Available CCT
Tech Spec. Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Reflector Customizable
X2-DL
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
​
6W 40 35 68 24°/36°/60°
​
12W 60 55 82 24°/36°/60°
​
18W 70 66 100 24°/36°/60°
*all dimensions are in mm
Reflector Customizable
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
X3-DL
Specifications
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
Driver Powered by
*all dimensions are in mm
or EQUIVALENT
or EQUIVALENT
Wattage Outer Dia Cutout Dia Height Beam Angle
​
10W 80 70 45 60°
15W 100 85 55 60°
20W 110 100 55 60°
Reflector Customizable
X4-EDL
*all dimensions are in mm
Specifications
Wattage Outer Dia Cutout Dia. Height Beam Angle
10W 98 85 80 24°
20W 98 85 110 24°
Reflector Customizable
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
X5-DL
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
7W 69 65 70 24°/36°/60°
12W 83 75 74 24°/36°/60°
​
18W 95 90 90 24°/36°/60°
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
7W 69 65 70 24°/36°
12W 83 75 74 24°/36°
​
18W 95 90 90 24°/36°
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
*all dimensions are in mm
X7-DL
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
12W 85 65 87 24°/36°
​
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
*all dimensions are in mm
X8-DL
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
12W 90 75 90 24°/36°
​
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
*all dimensions are in mm
Wall Washer Downlight
WOX-W1
Specifications
Wattage Outer Dia Cutout Dia Height Beam Angle
6W 80 70 100 24°
​
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Polarised Downlight Wall Washer
POLO WW2
Specifications
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
*all dimensions are in mm
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Wattage Outer Dia Cutout Dia Height Beam Angle
12W 84 68 78 30°
20W 107 88 85 30°
Surface COB Focus Light
PIXEL
Specifications
Available CCT
Tech Spec Sheet
CW
WW
NW
Download
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
*all dimensions are in mm
Wattage Outer Dia Height Beam Angle
Round
7W 80 110 30°
​
10W/12W 80 150 30°
15W/18W 80 180 30°
Square
10W 74 95 30°
​
15W 76 150 30°
20W 96 150 30°
Reflector Customizable
PIXEL - BEND 180°
© 2020 by Emergex LLP. All Rights Reserved.
Specifications
Wattage Outer Dia Height Beam Angle
*all dimensions are in mm
9W 50 150 30°
Reflector Customizable
Available CCT
Tech Spec Sheet
CW
WW
NW
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Download
360° SURFACE COB
Specifications
Wattage Outer Dia Height Beam Angle
12W 85 105 24°
​
20W 95 110 24°
​
30W 115 110 24°
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Download
ZOOMABLE SURFACE CYLINDER FOCUS COB
Specifications
Wattage Outer Dia Height Beam Angle
8W 65 225 24°
20W 93 235 24°
​
30W 113 245 24°
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Download
DEEP SURFACE CYLINDER FOCUS COB
Specifications
Wattage Outer Dia Height Beam Angle
1W 35 82 24°
5W 35 82 24°
8W 60 107 24°
12W 70 120 24°
20W 100 150 24°
*all dimensions are in mm
Available CCT
Tech Spec Sheet
CW
WW
NW
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Download
LONG SURFACE/HANGING COB FOCUS
Specifications
Wattage Outer Dia Height Beam Angle
12W(Hanging) 55 325 24°
12W 75 300 24°
20W 100 300 24°
*all dimensions are in mm
Reflector Customizable
Available CCT
Tech Spec Sheet
CW
WW
NW
LED Powered by
or EQUIVALENT
Driver Powered by
or EQUIVALENT
Download
COB Cylinder Wallwasher
Specifications
Wattage Outer Dia Height Beam Angle
*all dimensions are in mm
12W 60 200 15° - 60°
